These rugged, low profile pneumatic Rotary Indexing Tables are the perfect fit for your next assembly or machining project. The “shot pin” locking mechanism assures a positive and accurate locking position, while the index cylinder delivers a smooth and controlled indexing motion. All these functions operate without the use of electric motors or controllers.
Applications: Transferring, Filling, Conveying, Feeding, or Indexing of parts for the machining and/or assembly operations. Can be mounted in a vertical or horizontal position.

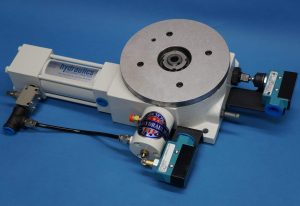

Model 794 (7″)
Perfect for those applications where ruggedness and compact size are critical
Model 1092 (10″)
An excellent medium duty indexer for general purpose use

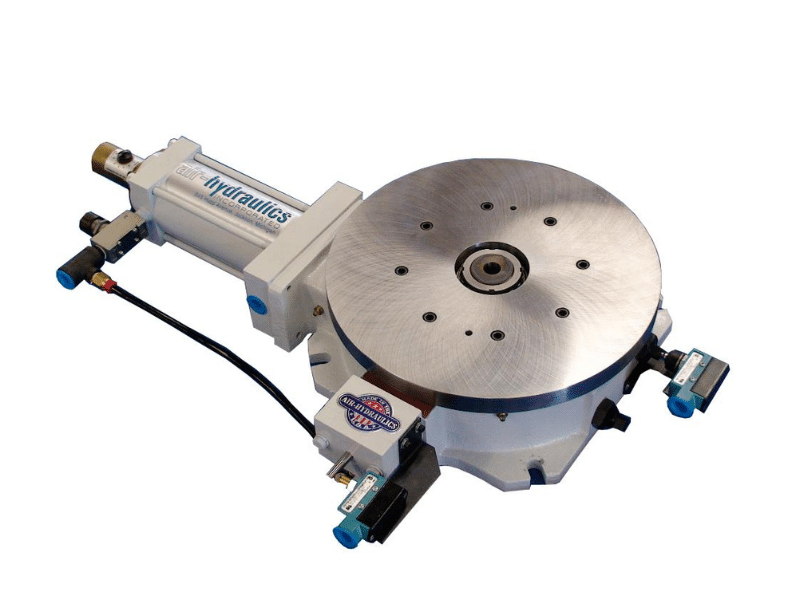

Model 1581 (15″)
An outstanding performer with virtually unlimited applications
Rotary Index Tables Information
Rotary Indexing Table Model Comparison
Description | Model 794 | Model 1092 | Model 1581 |
---|---|---|---|
Specifications | |||
Dial Plate Diameter | 7″ | 10″ | 15″ |
Maximum Load Capacity without LFLS Wear Bearing | 100 lbs. | 200 lbs. | 300 lbs. |
Maximum Load Capacity with LFLS Wear Bearing | 200 lbs. | 400 lbs. | 600 lbs. |
Maximum Unsupported Sub-Plate O.D. | 14″ | 20″ | 30″ |
Standard Index Range | 4 to 24 | 4 to 24 | 4 to 30 |
Spindle Thru Hole I.D. | 1/2″ | 3/4″ | 3/4″ |
Accuracy (at table diameter) | ± 0.001″ | ± 0.001″ | ± 0.0015″ |
Torque or Power Stroke | 200 lbs. 2″ radius |
390 lbs. 2.5″ radius |
750 lbs. 5″ radius |
Maximum Cylinder Stroke | 2.950″ | 3.687″ | 5.612″ |
Maximum Side Pressure in Stop Position (Radial lbs. @500 R.P.M.) | 795 lbs. | 1,320 lbs. | 1,680 lbs. |
Thrust (@ 500 R.P.M.) | 630 lbs. | 1,140 lbs. | 1,350 lbs. |
Maximum Side Pressure in Stop Position | 3,150 lbs. | 5,480 lbs. | 6,720 lbs. |
Air Requirements | |||
Supply Pipe Size (minimum) | 1/4″ NPT | 3/8″ NPT | 1/2″ NPT |
Minimum Air Pressure (Filtered and Lubricated) | 80 PSI | 80 PSI | 80 PSI |
Maximum Air Pressure (Filtered and Lubricated) | 110 PSIG | 110 PSIG | 110 PSIG |
Air Consumption @ 100 PSIG | 20 in3 cycle | 35 in3 cycle | 108 in3 cycle |
Valve Required | 2 pos. 4 way | 2 pos. 4 way | 2 pos. 4 way |
Shipping Weight | 56 lbs. | 100 lbs. | 200 lbs. |
Standard Features & Options
Standard Features
- Tapered Roller Bearing Construction
- Postive Index, Postive “Shot Pin” Locking
- +/- .001″ Accuracy at Table Top Diameter
- Two Electric Microswitches To Sense Indexing and Locking Positions
- Up to 24 Indexing Stations Available
- Clockwise Rotation
Available Options
- LFLS Wear Bearing (Low Friction Load Surface) – Reduces rotary friction and doubles load carrying capacity
- Shock Absorber (10″ and 15″ only) – Mechanical device mounted on blind end of index cylinder to absorb high shock loads (Clockwise rotation only)
- Sub plates – Aluminum or steel tooling plates, mounted or unmounted, with or without fixture mounting holes
- Pneumatic, Oil-tite or Explosion-proof limit switches (micro switches are standard)
- Power System (PS-E) which includes F-R-L, 120V Solenoid Operated 4/2 Directional Valve, Muffler, and Air Tubing. Note: Solenoid valve available in 24vDC, please consult factory.
Indexing Tables Sequence of Operation with Animation
- The directional control valve is shifted by the pilot or solenoid signal. This causes the locking cylinder to retract, unlocking the table. Note: The signal to the solenoid or pilot must be maintained until the table top has completed its movement.
- With the locking cylinder of the index ring, the index cylinder retracts, moving the index arm which in turn rotates the table top.
- After the index cylinder is fully retracted, the directional control valve is shifted back. This forces the locking cylinder forward and locks the table into position. When the locking cylinder locks the table into place, it pushes the index pawl out of the index ring.
- With the index pawl clear of the index ring, the index cylinder moves forward until it hist the stop rod. When the stop rod is adjusted properly, the index pawl is spring activated into the next slot on the index ring and the index cycle is complete.
- The index table is now ready for the next index cycle.
CAD Drawings
3-D Viewing Files
*No CAD Software Needed
Rotary Index Table Photos and Video
